ADSS 2-144 Core All-Dielectric Self-Supporting Optical Fiber Cable manufacturers the floor price,outdoor fiber optic cab

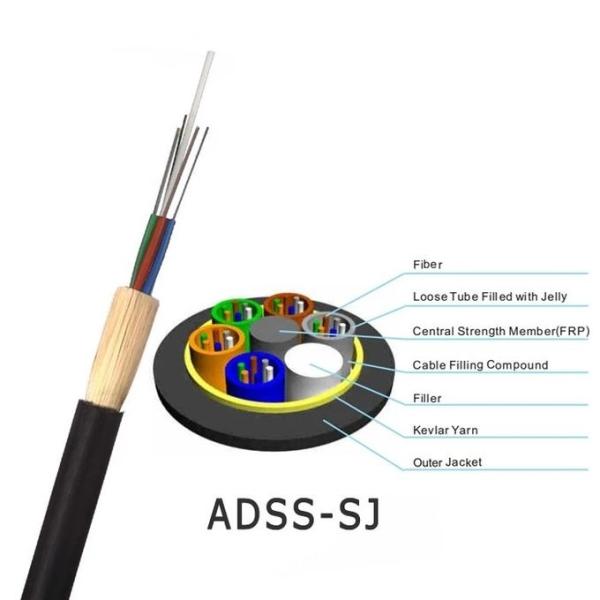

Description:
1. ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.
2. The tubes are filled with a water-resistant filling compound.
3. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
4. After the cable core is filled with filling compound.
5. it is covered with thin PE (polyethylene) inner sheath.
6. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Characteriatic:
1. Can be installed without shutting off the power
2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
Parameter:
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight kg/km | Max working tension kN | Strength member CSA mm2 | Modulus of elasticity kN/mm2 |
| ADSS | 2 | 1 | 4 | 12.5 | 136 | 1.5 | 4.6 | 7.6 |
| ADSS | 4 | 2 | 3 | 13.0 | 142 | 2.25 | 7.6 | 8.3 |
| ADSS | 8 | 3 | 2 | 13.3 | 148 | 3.0 | 10.35 | 9.45 |
| ADSS | 10 | 4 | 1 | 13.6 | 156 | 3.6 | 13.8 | 10.8 |
| ADSS | 12 | 5 | 0 | 13.8 | 159 | 4.5 | 14.3 | 11.8 |
| ADSS | 14 | 6 | 0 | 14.5 | 177 | 5.4 | 18.4 | 13.6 |
| ADSS | 16 | 4 | 1 | 14.9 | 185 | 6.75 | 22.0 | 16.4 |
| ADSS | 20 | 5 | 0 | 15.1 | 193 | 7.95 | 26.4 | 18.0 |
| ADSS | 24 | 6 | 0 | 15.5 | 201 | 9.0 | 32.2 | 19.1 |
| ADSS | 28 | 7 | 1 | 15.6 | 208 | 10.5 | 33.0 | 19.6 |
| ADSS | 32 | 8 | 0 | 16.3 | 226 | 12.75 | 40.0 | 21.0 |
| ADSS | 36 | 9 | 1 | 16.8 | 242 | 15.45 | 48.0 | 24.0 |
| ADSS | 42 | 10 | 0 | 17.2 | 253 | 16.2 | 51.0 | 25.1 |
| ADSS | 48 | 11 | 1 | 17.9 | 266 | 18.0 | 58.8 | 25.1 |
Optical Characteristic:
| G.652 | G.655 | 50/125μm | 62.5/125μm |
|
Attenuation(+20ºC) | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40dB/km |
|
|
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
|
| Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
| @1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
|
|
Packaging Detail: ADSS 2-288 Core Optical Fiber Cable package are with export wooden drum. Outdoor 2-288 Core Optical Fiber Cable's wooden dimension is 100cm*75cm*75cm, 0.57CBM. Outdoor cable's delivery length according to 2-288 Core Optical Fiber Cable cores. Also accept custom cable drum from customers. welcome to contact us!
